iW: Intelliweave

Intelliweave technology aims to provide flexibility and strength. These fibers are woven by hand in a 3D pattern and gait-matched according to a patient’s unique specifications. As the Terrain iW responds to a user’s movement, there may be a lighter impact on the limb and socket.

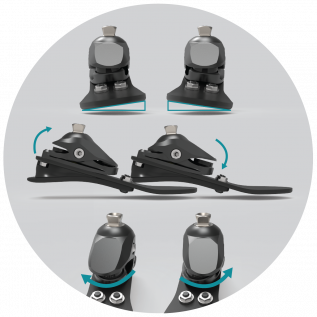

Tri-Axial Ankle Movement

Building upon the success of the popular Terrain foot, the Terrain iW uses a similar ankle to achieve movement on all three planes—the sagittal, coronal, and transverse. Whether you’re relaxing with family, grocery shopping, or simply walking to get the mail, this foot can increase ground compliance for everyday obstacles.

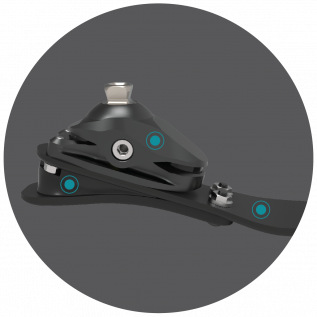

Supportive and Service-Free

User friendly for patients and clinicians, the Terrain iW is service-free! With permanent bumpers inside the ankle housing, there’s no need to disassemble the foot and replace urethane parts. The Terrain iW’s durable heel wedge is designed to enhance stability upon heel strike—which may improve ground contact while walking.

Skip to the beginning of the images gallery

Step Into Your Comfort Zone

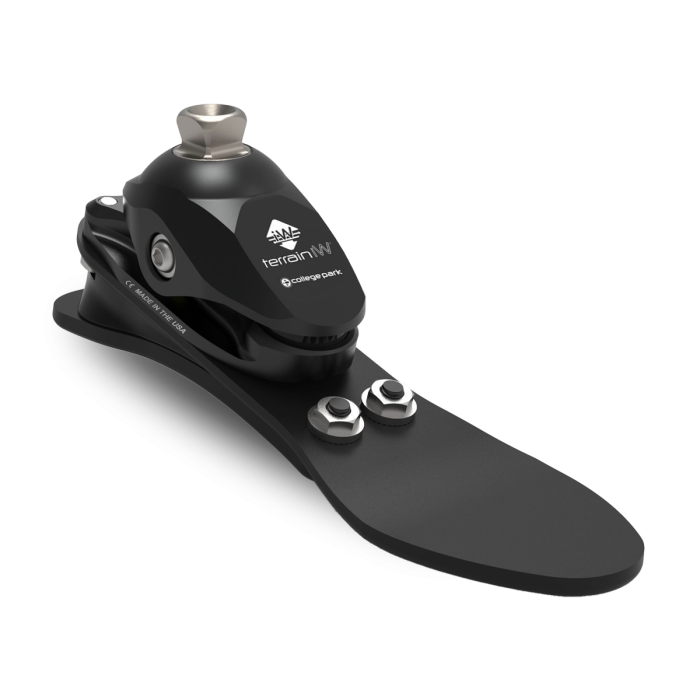

With a focus on low-impact K2 users, College Park combines some of its most popular and trusted technology in the new Terrain iW. This lightweight foot offers tri-axial movement on an Intelliweave composite base. Featuring anatomical ankle motion, flexible springs, and a durable heel wedge, the Terrain iW was designed for comfort and stability.

*430mm stainless steel. Kits must be ordered directly from College Park. US and Canada only.

Suggested L Codes : L5972, L5986
PDAC APPROVED

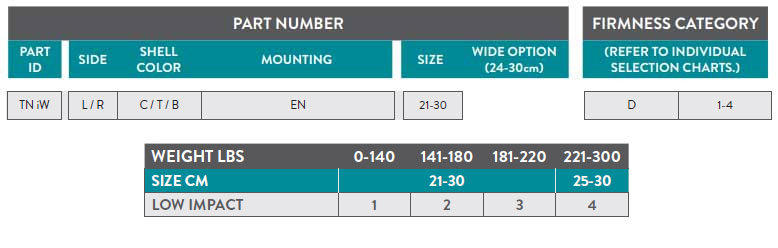

Build Part Number

Suggested L Codes : L5972, L5986
PDAC APPROVED

Choose Side

Left

Right

Left

Choose Color

Choose Size

Part Number

Copied to clipboard

Right

Same as Left Side

Choose Color

Choose Size

Part Number

Copied to clipboard

Shoe Size Conversion Chart

FOOT SIZE (cm)	U.S. Shoe Sizes
FOOT SIZE (cm)	Children	Men	Women
13	5.5-6.5
14	7-7.5
15	8-8.5
16	9-9.5
17	10-11
18	11.5-12.5
19	13-13.5
20	1-1.5
21	2-2.5	2-2.5	4-4.5
22		3-4	5-5.5
23		4.5-5	6-6.5
24		5.5-7	7-8
25		7.5-8	8.5-9.5
26		8.5-9	10-10.5
27		9.5-10.5	11-11.5
28		11-11.5	12
29		12-13
30		14
31		15

Specs & Downloads

Specifications

*26cm, with Removable foot shell and CPI sock.
** The listing of codes with these products should not be construed as a guarantee for coverage or payment. Ultimate responsibility for the coding of services/products rests with the individual practitioner.

	Impact Level	Low
	Mounting	Endo
	Weight*	645 g
	Weight Limit	21-24 cm 220 lbs 25-30 cm 300 lbs
	Size Range	21-30 cm
	Build Height	2.5 in (21-24 cm) 2.7 in (25-26 cm) 2.9 in (27-30 cm)
	Function	Tri-axial
	Water Capability	Waterproof in Fresh Water
	Warranty	2 years
