ADJUSTABLE TORSION

With 20° of internal and external rotation, the Orbit may restore natural motion that was lost to amputation. It could also help reduce forces to a user’s socket and residual limb. Prosthetists are able to quickly adjust torsion resistance with a 4mm hex wrench.

Integrated Energy in Low Profile

College Park’s innovative torsion mechanism uses a ball bearing design to provide energy return during transverse rotation. This low-profile foot aims to help a wide range of users twist and turn with ease.

Optimized for Balance

The Orbit’s heel spring and curved toe spring were meticulously crafted using stress predictions to increase durability. This foot’s design can help provide flexibility, smooth rollover, and enhanced ground contact.

Skip to the beginning of the images gallery

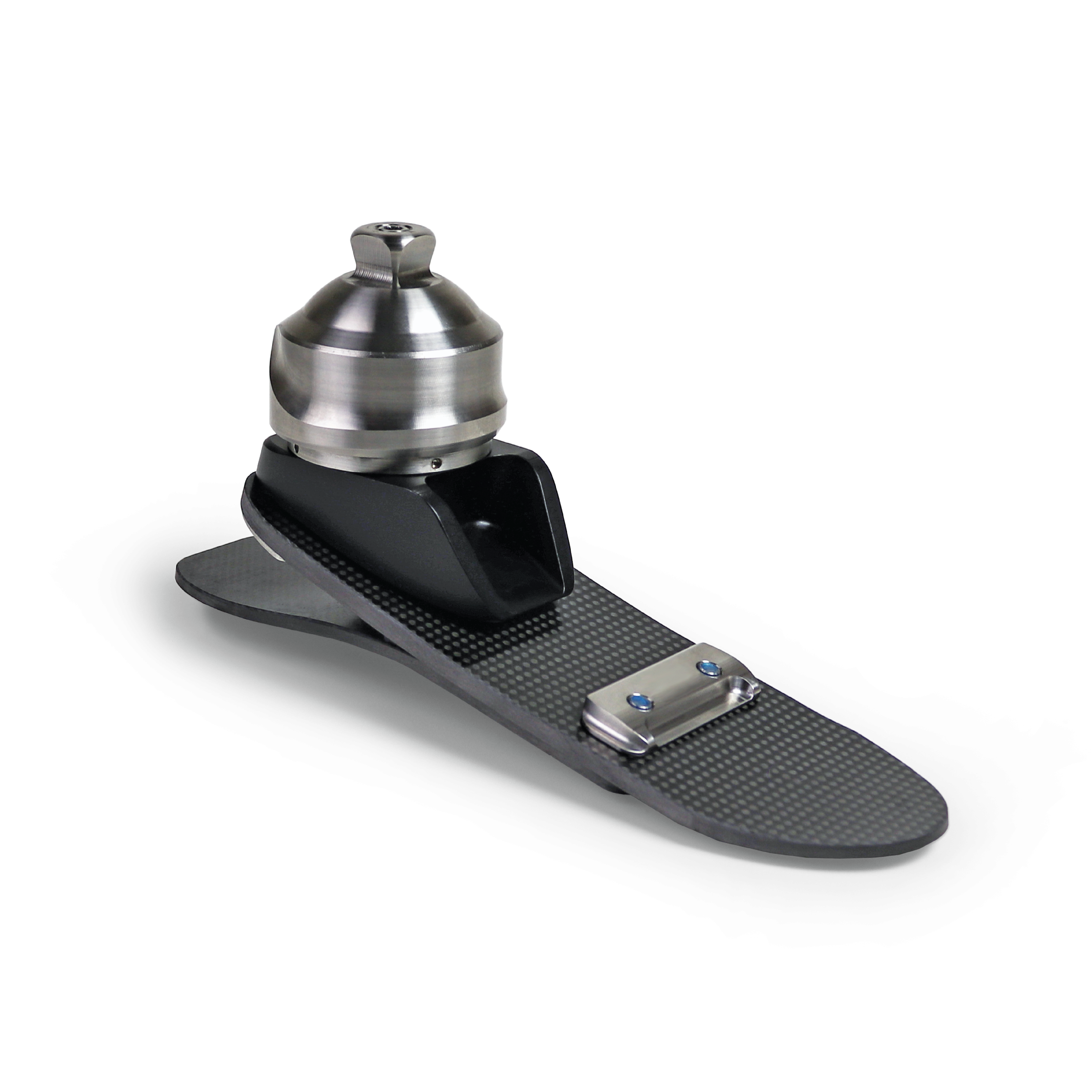

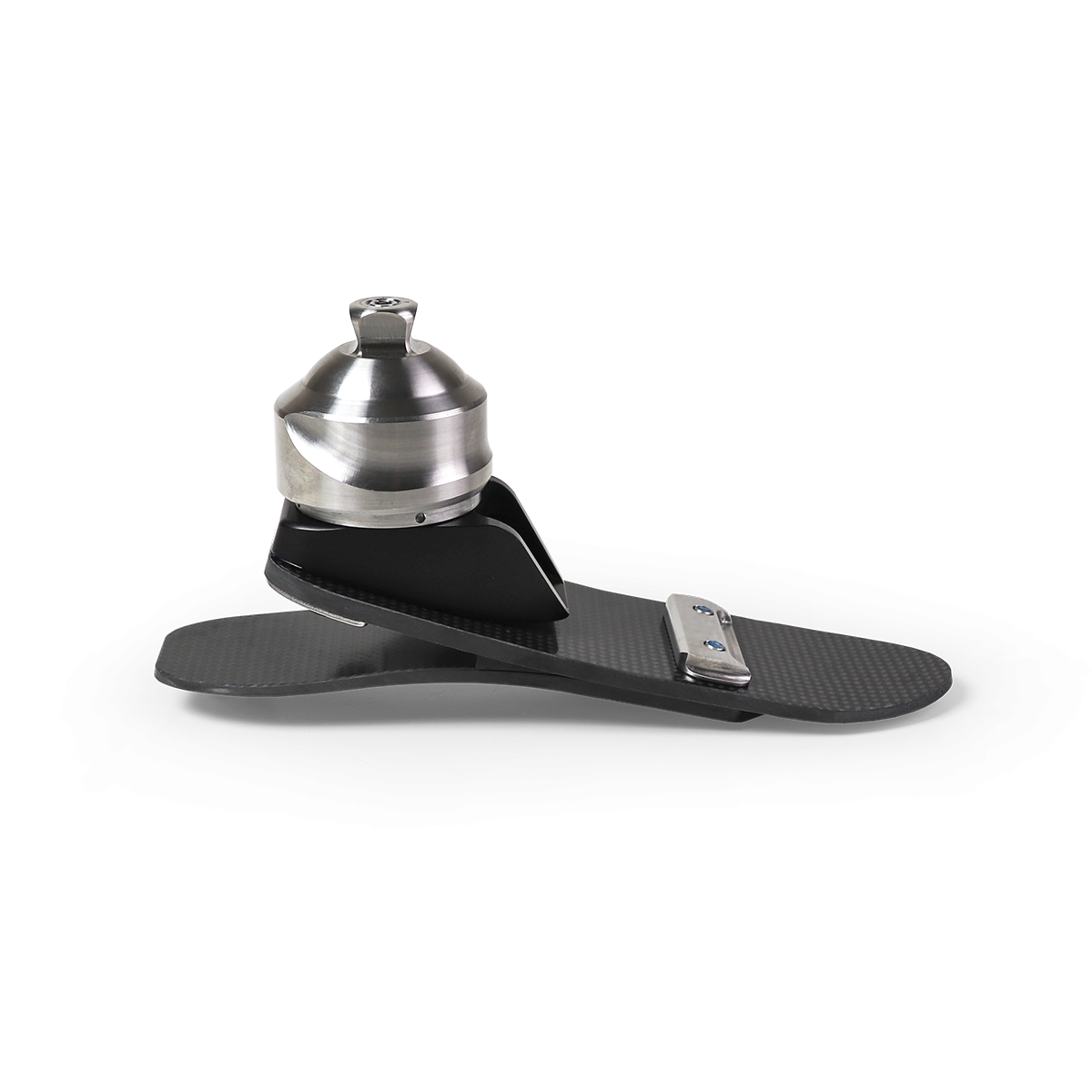

The Turning Point

The world does revolve around you. The new Orbit foot was designed to provide smooth rotation and rollover. College Park’s unique, built-in torsion feature has integrated energy return, which may improve comfort for golf, baseball, tennis, and more! The durable Orbit offers an incredibly low profile and total rotation range of 40°. This foot also incorporates College Park’s composite expertise in a carbon fiber design, helping to provide a dynamic response during low to high impact activities.

*430mm stainless steel. Kits must be ordered directly from College Park. US and Canada only.

Suggested L Codes : L5981, L5984
PDAC APPROVED

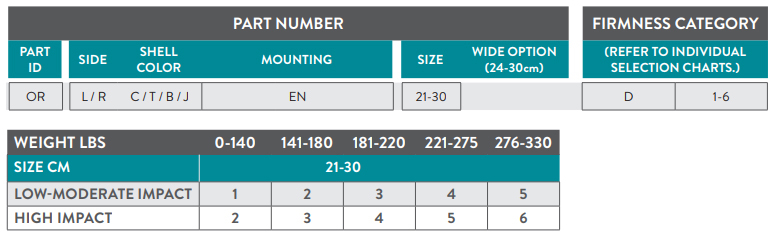

Build Part Number

Suggested L Codes : L5981, L5984
PDAC APPROVED

Choose Side

Left

Right

Left

Choose Color

Choose Impact

Choose Size

Part Number

Copied to clipboard

Right

Same as Left Side

Choose Color

Choose Impact

Choose Size

Part Number

Copied to clipboard

Shoe Size Conversion Chart

FOOT SIZE (cm)	U.S. Shoe Sizes
FOOT SIZE (cm)	Children	Men	Women
13	5.5-6.5
14	7-7.5
15	8-8.5
16	9-9.5
17	10-11
18	11.5-12.5
19	13-13.5
20	1-1.5
21	2-2.5	2-2.5	4-4.5
22		3-4	5-5.5
23		4.5-5	6-6.5
24		5.5-7	7-8
25		7.5-8	8.5-9.5
26		8.5-9	10-10.5
27		9.5-10.5	11-11.5
28		11-11.5	12
29		12-13
30		14
31		15

Specs & Downloads

Specifications

*26cm, with Removable foot shell and CPI sock.
** The listing of codes with these products should not be construed as a guarantee for coverage or payment. Ultimate responsibility for the coding of services/products rests with the individual practitioner.

	Impact Level	Low/Moderate-High
	Mounting	Endo
	Weight*	895 g
	Weight Limit	330 lbs (150 kg)
	Size Range	21-30 cm
	Build Height	21-25 cm \| 3.7” (9.3cm) 26-30 \| 3.9” (9.8 cm)
	Foot Base	Carbon Fiber
	Water Capability	Waterproof in Fresh Water
	Warranty	3 years
