Intelliweave and Gait Matching

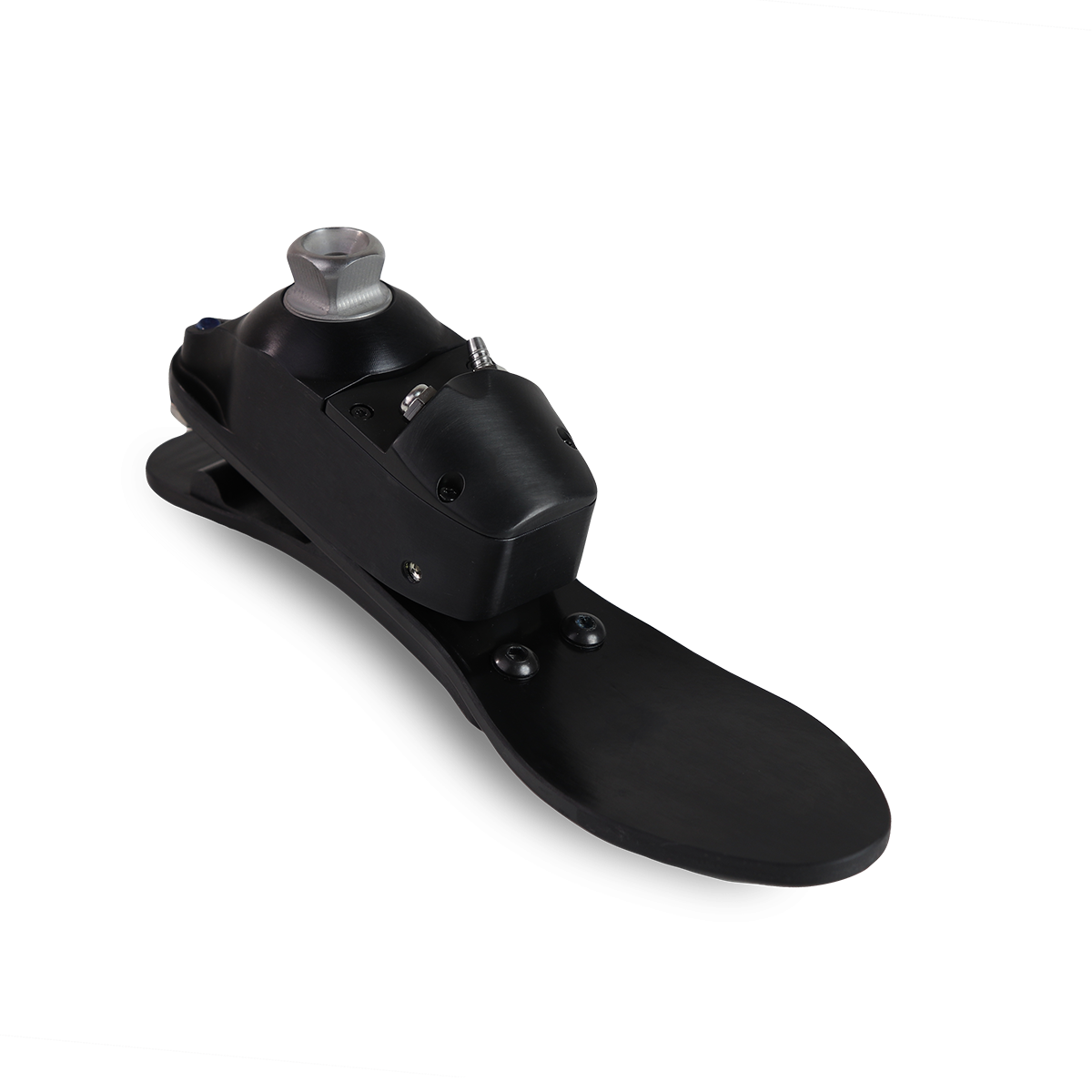

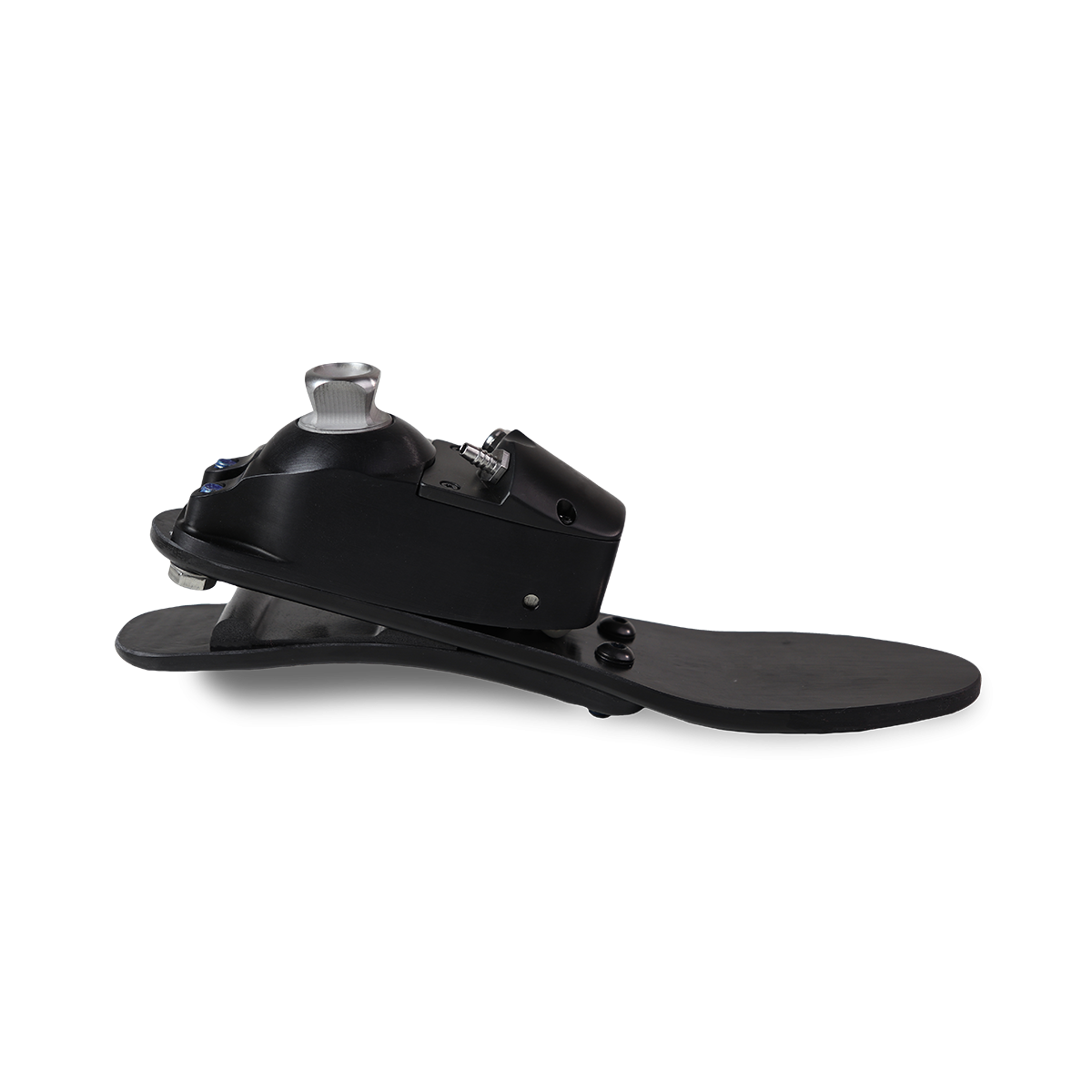

Using Intelliweave® composite technology, the Celsus iVT offers high strength and flexibility. The fibers are woven by hand in a 3D pattern for durability and precision gait matching. Intelliweave helps the Celsus iVT meet a patient’s unique specifications.

Total Ground Contact

The Celsus iVT uses a dynamic composite heel to help achieve better ground contact and smooth transitions. This energy-storing heel is part of our Integrated Spring Technology (iST®), which incorporates multiple springs working together to provide a proportional response. Durable yet lightweight, the Celsus iVT provides multi-axial movement with a natural center of rotation in the ankle.

Efficient Integrated Vacuum

With Integrated Vacuum Technology (iVT) in a low-profile design, a wide range of users could benefit from this enhanced suspension to the residual limb. College Park's vacuum is designed to pull up to 20 inHg in a few steps.*

Skip to the beginning of the images gallery

Comfort and Integrated K2 Vacuum

Vacuum systems can be a great benefit for K2 patients, allowing them the ability to reduce limb volume fluctuations and pistoning.^[1,2,3] College Park's Integrated Vacuum Technology (iVT) is designed to pull up to 20 inHg in fewer steps, allowing patients to efficiently achieve optimal vacuum.* With enhanced suspension to the residual limb, this low-profile foot may improve comfort and overall limb health. The Celsus iVT also features Integrated Spring Technology (iST®) and Intelliweave® composites for energy, strength, and flexibility.

*Results may vary based on impact and activity. Maximum attainable vacuum ranges from 18-22 inHg.

Suggested L Codes : L5972, L5986, L5781

Build Part Number

Suggested L Codes : L5972, L5986, L5781

Choose Side

Left Only

Right Only

Left

Choose Color

Choose Size

Tube Kit Selection

Part Number

Copied to clipboard

Right

Same as Left Side

Choose Color

Choose Size

Tube Kit Selection

Part Number

Copied to clipboard

Shoe Size Conversion Chart

FOOT SIZE (cm)	U.S. Shoe Sizes
FOOT SIZE (cm)	Children	Men	Women
13	5.5-6.5
14	7-7.5
15	8-8.5
16	9-9.5
17	10-11
18	11.5-12.5
19	13-13.5
20	1-1.5
21	2-2.5	2-2.5	4-4.5
22		3-4	5-5.5
23		4.5-5	6-6.5
24		5.5-7	7-8
25		7.5-8	8.5-9.5
26		8.5-9	10-10.5
27		9.5-10.5	11-11.5
28		11-11.5	12
29		12-13
30		14
31		15

Specs & Downloads

Specifications

	Impact Level	Low
	Mounting	Endo (IP)
	Weight Limit	220 lbs (21-24 cm) 300 lbs (25-30 cm)
	Size Range	21-30 cm
	Clearance	2.2-2.6" (5.6-6.6 cm)
	Weight*	652 g
	Foot Base	Intelliweave®
	Water Capability	Weatherproof
	Warranty	2 years

Downloads

Product Catalog - Celsus iVT Product Brochure - Celsus iVT Technical Instructions iVT User Guide Vacuum Service Kit Instructions Warranty Information

Cosmetic Options

Color Options

Caucasian

Tan

Brown

Shell Type: Sandal Toe

Shell Width: Standard

Includes: Foot, foot shell, CPI sock, Selection of 1 Tube Kit (AK or BK)

Beil, T. L.; Street, G. M.; Covey, S. J. Interface pressure during ambulation using suction and vacuum-assisted prosthetic sockets. J. Rehabil. Res. Dev. 39(6):693–700; 2002.
Goswami, J.; Lynn, R.; Street, G.; Harlander, M. Walking in a vacuum-assisted socket shifts the stump fluid balance. Prosthet. Orthot. Int. 27(2):107–113; 2003.
Board, W. J.; Street, G. M.; Caspers, C. A comparison of trans-tibial amputee suction and vacuum socket conditions. Prosthet. ORTHOT. INT. 25(3):202–209; 2001
