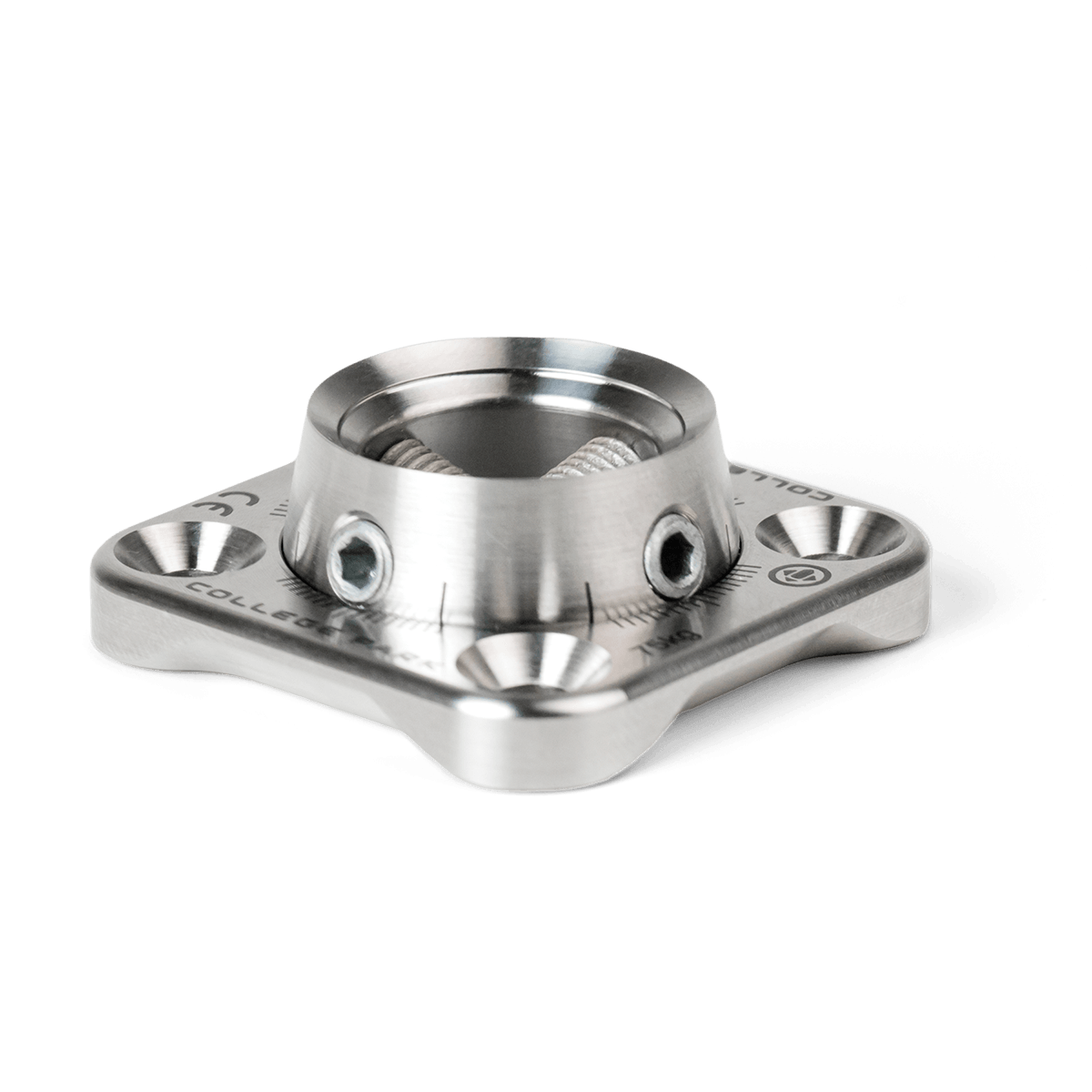

4-Hole Pyramid Receiver, Rotatable, Pediatric

4-Hole Pyramid Receiver, Rotatable, Pediatric
College Park’s 4-hole rotatable adapters provide an infinite number of positions with a smooth, rotatable interface. They also maintain the set position when removing the fasteners.
Part Number: 4HPRR TP

Specifications

Build Height Build Height 16 mm (0.63 in)
Assembly Weight Assembly Weight 50 g
Patient Weight Limit Patient Weight Limit 75 kg (165 lbs)
Warranty Warranty 3 years, limited
Torque (Fasteners) Torque (Fasteners) 8 N∙m (5.9 ft-lbs)
Torque (Set Screws) Torque (Set Screws) 8 N∙m (5.9 ft-lbs)
